Cling Core

This is the source of the SwitchPower:1 service - note that although there are many annotations in the source, no runtime dependency on Cling exists:

package example.binarylight;

import org.teleal.cling.binding.annotations.*;

@UpnpService(
        serviceId = @UpnpServiceId("SwitchPower"),
        serviceType = @UpnpServiceType(value = "SwitchPower", version = 1)
)
public class SwitchPower {

    @UpnpStateVariable(defaultValue = "0", sendEvents = false)
    private boolean target = false;

    @UpnpStateVariable(defaultValue = "0")
    private boolean status = false;

    @UpnpAction
    public void setTarget(@UpnpInputArgument(name = "NewTargetValue")
                          boolean newTargetValue) {
        target = newTargetValue;
        status = newTargetValue;
        System.out.println("Switch is: " + status);
    }

    @UpnpAction(out = @UpnpOutputArgument(name = "RetTargetValue"))
    public boolean getTarget() {
        return target;
    }

    @UpnpAction(out = @UpnpOutputArgument(name = "ResultStatus"))
    public boolean getStatus() {
        return status;
    }

}

To compile this class the Cling Core library has to be available on your classpath. However, once compiled this class can be instantiated and executed in any environment, there are no dependencies on any framework or library code.

The annotations are used by Cling to read the metadata that describes your service, what UPnP state variables it has, how they are accessed, and what methods should be exposed as UPnP actions. You can also provide Cling metadata in an XML file or programmatically through Java code - both options are discussed later in this manual. Source code annotations are usually the best choice.

You might have expected something even simpler: After all, a binary light only needs a single boolean state, it is either on or off. The designers of this service also considered that there might be a difference between switching the light on, and actually seeing the result of that action. Imagine what happens if the light bulb is broken: The target state of the light is set to true but the status is still false, because the SetTarget action could not make the switch. Obviously this won't be a problem with this simple demonstration because it only prints the status to standard console output.

Devices (and embedded devices) are created programmatically in Cling, with plain Java code that instantiates an immutable graph of objects. The following method creates such a device graph and binds the service from the previous section to the root device:

LocalDevice createDevice()
        throws ValidationException, LocalServiceBindingException, IOException {

    DeviceIdentity identity =
            new DeviceIdentity(
                    UDN.uniqueSystemIdentifier("Demo Binary Light")
            );

    DeviceType type =
            new UDADeviceType("BinaryLight", 1);

    DeviceDetails details =
            new DeviceDetails(
                    "Friendly Binary Light",
                    new ManufacturerDetails("ACME"),
                    new ModelDetails(
                            "BinLight2000",
                            "A demo light with on/off switch.",
                            "v1"
                    )
            );

    Icon icon =
            new Icon(
                    "image/png", 48, 48, 8,
                    getClass().getResource("icon.png")
            );

    LocalService<SwitchPower> switchPowerService =
            new AnnotationLocalServiceBinder().read(SwitchPower.class);

    switchPowerService.setManager(
            new DefaultServiceManager(switchPowerService, SwitchPower.class)
    );

    return new LocalDevice(identity, type, details, icon, switchPowerService);

    /* Several services can be bound to the same device:
    return new LocalDevice(
            identity, type, details, icon,
            new LocalService[] {switchPowerService, myOtherService}
    );
    */

}

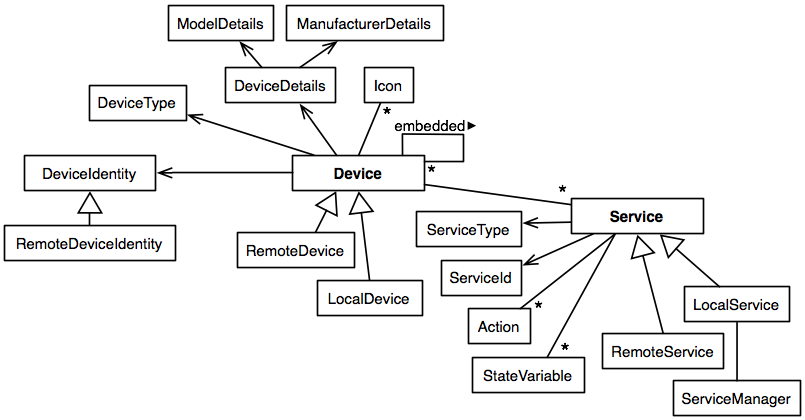

Let's step through this code. As you can see, all arguments that make up the device's metadata have to be provided through constructors, because the metadata classes are immutable and hence thread-safe.

DeviceIdentity

Every device, no matter if it is a root device or an embedded device of a root device, requires a unique device name (UDN). This UDN should be stable, that is, it should not change when the device is restarted. When you physically unplug a UPnP appliance from the network (or when you simply turn it off or put it into standby mode), and when you make it available later on, it should expose the same UDN so that clients know they are dealing with the same device. The UDN.uniqueSystemIdentifier() method provides exactly that: A unique identifier that is the same every time this method is called on the same computer system. It hashes the network cards hardware address and a few other elements to guarantee uniqueness and stability.

DeviceType

The type of a device also includes its version, a plain integer. In this case the BinaryLight:1 is a standardized device template which adheres to the UDA (UPnP Device Architecture) specification.

DeviceDetails

This detailed information about the device's "friendly name", as well as model and manufacturer information is optional. You should at least provide a friendly name value, this is what UPnP applications will display primarily.

Icon

Every device can have a bunch of icons associated with it which similar to the friendly name are shown to users when appropriate. You do not have to provide any icons if you don't want to, use a constructor of LocalDevice without an icon parameter.

Service

Finally, the most important part of the device are its services. Each Service instance encapsulates the metadata for a particular service, what actions and state variables it has, and how it can be invoked. Here we use the Cling annotation binder to instantiate a Service, reading the annotation metadata of the SwitchPower class.

Because a Service instance is only metadata that describes the service, you have to set a ServiceManager to do some actual work. This is the link between the metadata and your implementation of a service, where the rubber meets the road. The DefaultServiceManager will instantiate the given SwitchPower class when an action which operates on the service has to be executed (this happens lazily, as late as possible). The manager will hold on to the instance and always re-use it as long as the service is registered with the UPnP stack. In other words, the service manager is the factory that instantiates your actual implementation of a UPnP service.

Also note that LocalDevice is the interface that represents a UPnP device which is "local" to the running UPnP stack on the host. Any device that has been discovered through the network will be a RemoteDevice with RemoteService's, you typically do not instantiate these directly.

A ValidationException will be thrown when the device graph you instantiated was invaild, you can call getErrors() on the exception to find out which property value of which class failed an integrity rule. The local service annotation binder will provide a LocalServiceBindingException if something is wrong with your annotation metadata on your service implementation class. An IOException can only by thrown by this particular Icon constructor, when it reads the resource file.

The Cling Core main API entry point is a thread-safe and typically single shared instance of UpnpService:

package example.binarylight;

import org.teleal.cling.UpnpService;
import org.teleal.cling.UpnpServiceImpl;
import org.teleal.cling.binding.*;
import org.teleal.cling.binding.annotations.*;
import org.teleal.cling.model.*;
import org.teleal.cling.model.meta.*;
import org.teleal.cling.model.types.*;

import java.io.IOException;

public class BinaryLightServer implements Runnable {

    public static void main(String[] args) throws Exception {
        // Start a user thread that runs the UPnP stack
        Thread serverThread = new Thread(new BinaryLightServer());
        serverThread.setDaemon(false);
        serverThread.start();
    }

    public void run() {
        try {

            final UpnpService upnpService = new UpnpServiceImpl();

            Runtime.getRuntime().addShutdownHook(new Thread() {
                @Override
                public void run() {
                    upnpService.shutdown();
                }
            });

            // Add the bound local device to the registry
            upnpService.getRegistry().addDevice(
                    createDevice()
            );

        } catch (Exception ex) {
            System.err.println("Exception occured: " + ex);
            ex.printStackTrace(System.err);
            System.exit(1);
        }
    }

}

(The createDevice() method from the previous section should be added to this class.)

As soon as the UPnPServiceImpl is created, the stack is up and running. You always have to create a UPnPService instance, no matter if you write a client or a server. The UpnpService maintains a registry of all the discovered remote device on the network, and all the bound local devices. It manages advertisements for discovery and event handling in the background.

You should shut down the UPnP service properly when your application quits, so that all other UPnP systems on your network will be notified that bound devices which are local to your application are no longer available. If you do not shut down the UpnpService when your application quits, other UPnP control points on your network might still show devices as available when they are in fact already gone.

The createDevice() method from the previous section is called here, as soon as the Registry of the local UPnP service stack is available.

You can now compile and start this server, it should print some informational messages to your console and then wait for connections from UPnP control points. Use the Cling Workbench if you want to test your server immediately.

The client application has the same basic scaffolding as the server, it also uses a shared single instance of UpnpService:

package example.binarylight;

import org.teleal.cling.UpnpService;
import org.teleal.cling.UpnpServiceImpl;
import org.teleal.cling.controlpoint.*;
import org.teleal.cling.model.action.*;
import org.teleal.cling.model.message.*;
import org.teleal.cling.model.message.header.*;
import org.teleal.cling.model.meta.*;
import org.teleal.cling.model.types.*;
import org.teleal.cling.registry.*;

public class BinaryLightClient implements Runnable {

    public static void main(String[] args) throws Exception {
        // Start a user thread that runs the UPnP stack
        Thread clientThread = new Thread(new BinaryLightClient());
        clientThread.setDaemon(false);
        clientThread.start();

    }

    public void run() {
        try {

            UpnpService upnpService = new UpnpServiceImpl();

            // Add a listener for device registration events
            upnpService.getRegistry().addListener(
                    createRegistryListener(upnpService)
            );

            // Broadcast a search message for all devices
            upnpService.getControlPoint().search(
                    new STAllHeader()
            );

        } catch (Exception ex) {
            System.err.println("Exception occured: " + ex);
            System.exit(1);
        }
    }

}

Typically a control point sleeps until a device with a specific type of service becomes available on the network. The RegistryListener is called by Cling when a remote device has been discovered - or when it announced itself automatically. Because you usually do not want to wait for the periodic announcements of devices, a control point can also execute a search for all devices (or devices with certain service types or UDN), which will trigger an immediate discovery announcement from those devices that match the search query.

You can already see the ControlPoint API here with its search(...) method, this is one of the main interfaces you interact with when writing a UPnP client with Cling.

If you compare this code with the server code from the previous section you can see that we are not shutting down the UpnpService when the application quits. This is not an issue here, because this application does not have any local devices or service event listeners (not the same as registry listeners) bound and registered. Hence, we do not have to announce their departure on application shutdown and can keep the code simple for the sake of the example.

Let's focus on the registry listener implementation and what happens when a UPnP device has been discovered on the network.

The control point we are creating here is only interested in services that implement SwitchPower. According to its template definition this service has the SwitchPower service identifier, so when a device has been discovered we can check if it offers that service:

RegistryListener createRegistryListener(final UpnpService upnpService) {
    return new DefaultRegistryListener() {

        ServiceId serviceId = new UDAServiceId("SwitchPower");

        @Override
        public void remoteDeviceAdded(Registry registry, RemoteDevice device) {

            Service switchPower;
            if ((switchPower = device.findService(serviceId)) != null) {

                System.out.println("Service discovered: " + switchPower);
                executeAction(upnpService, switchPower);

            }

        }

        @Override
        public void remoteDeviceRemoved(Registry registry, RemoteDevice device) {
            Service switchPower;
            if ((switchPower = device.findService(serviceId)) != null) {
                System.out.println("Service disappeared: " + switchPower);
            }
        }

    };
}

If a service becomes available we immediately execute an action on that service. When a SwitchPower device disappears from the network a log message is printed. Remember that this is a very trivial control point, it executes a single a fire-and-forget operation when a service becomes available:

void executeAction(UpnpService upnpService, Service switchPowerService) {

        ActionInvocation setTargetInvocation =
                new SetTargetActionInvocation(switchPowerService);

        // Executes asynchronous in the background
        upnpService.getControlPoint().execute(
                new ActionCallback(setTargetInvocation) {

                    @Override
                    public void success(ActionInvocation invocation) {
                        assert invocation.getOutput().length == 0;
                        System.out.println("Successfully called action!");
                    }

                    @Override
                    public void failure(ActionInvocation invocation,
                                        UpnpResponse operation,
                                        String defaultMsg) {
                        System.err.println(defaultMsg);
                    }
                }
        );

}

class SetTargetActionInvocation extends ActionInvocation {

    SetTargetActionInvocation(Service service) {
        super(service.getAction("SetTarget"));
        try {

            // Throws InvalidValueException if the value is of wrong type
            setInput("NewTargetValue", true);

        } catch (InvalidValueException ex) {
            System.err.println(ex.getMessage());
            System.exit(1);
        }
    }
}

The Action (metadata) and the ActionInvocation (actual call data) APIs allow very fine-grained control of how an invocation is prepared, how input values are set, how the action is executed, and how the output and outcome is handled. UPnP is inherently asynchronous, so just like the registry listener, executing an action is exposed to you as a callback-style API.

It is recommended that you encapsulate specific action invocations within a subclass of ActionInvocation, which gives you an opportunity to further abstract the input and output values of an invocation. Note however that an instance of ActionInvocation is not thread-safe and should not be executed in parallel by two threads.

The ActionCallback has two main methods you have to implement, one is called when the execution was successful, the other when it failed. There are many reasons why an action execution might fail, read the API documentation for all possible combinations or just print the generated user-friendly default error message.

Compile the binary light demo application:

$ javac -cp /path/to/teleal-common.jar:/path/to/cling-core.jar \
        -d classes/ \
        src/example/binarylight/BinaryLightServer.java \
        src/example/binarylight/BinaryLightClient.java \
        src/example/binarylight/SwitchPower.java

Don't forget to copy your icon.png file into the classes output directory as well, into the right package from which it is loaded as a reasource (the example.binarylight package if you followed the previous sections verbatim).

You can start the server or client first, which one doesn't matter as they will discover each other automatically:

$ java -cp /path/to/teleal-common.jar:/path/to/cling-core.jar:classes/ \
        example.binaryLight.BinaryLightServer

$ java -cp /path/to/teleal-common.jar:/path/to/cling-core.jar:classes/ \
        example.binaryLight.BinaryLightClient

You should see discovery and action execution messages on each console. You can stop and restart the applications individually (press CTRL+C on the console).

Although the binary light is a very simple example, you might run into problems. Cling Core helps you resolve most problems with extensive logging. Internally, Cling Core uses Java JDK logging, also known as java.util.logging or JUL. There are no wrappers, logging frameworks, logging services, or other dependencies.

By default, the implementation of JUL in the Sun JDK will print only messages with level INFO, WARNING, or SEVERE on System.out, and it will print each message over two lines. This is quite inconvenient and ugly, so your first step is probably to configure one line per message. This requires a custom logging handler.

Next you want to configure logging levels for different logging categories. Cling Core will output some INFO level messages on startup and shutdown, but is otherwise silent during runtime unless a problem occurs - it will then log messages at WARNING or SEVERE level.

For debugging, usually more detailed logging levels for various log categories are required. The logging categories in Cling Core are package names, e.g the root logger is available under the name org.teleal.cling. The following tables show typically used categories and the recommended level for debugging:

One way to configure JUL is with a properties file. For example, create the following file as mylogging.properties:

# Enables a one-message-per-line handler (shipping in teleal-common.jar)
handlers=org.teleal.common.logging.SystemOutLoggingHandler

# The default (root) log level
.level=INFO

# Extra settings for various categories

org.teleal.cling.level=INFO

org.teleal.cling.protocol.level=FINEST

org.teleal.cling.registry.Registry.level=FINER
org.teleal.cling.registry.LocalItems.level=FINER
org.teleal.cling.registry.RemoteItems.level=FINER

You can now start your application with a system property that names your logging configuration:

$ java -cp /path/to/teleal-common.jar:/path/to/cling-core.jar:classes/ \
        -Djava.util.logging.config.file=/path/to/mylogging.properties \
        example.binaryLight.BinaryLightServer

You should see the desired log messages printed on System.out.

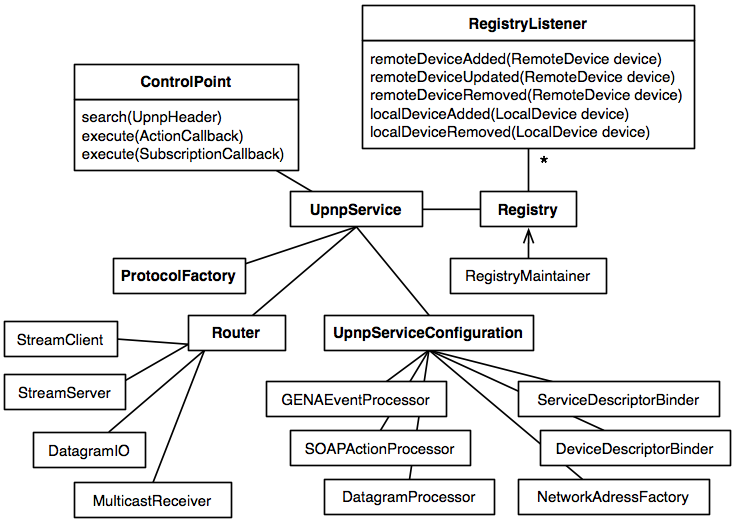

The UpnpService is an interface:

public interface UpnpService {

    public UpnpServiceConfiguration getConfiguration();
    public ProtocolFactory getProtocolFactory();
    public Router getRouter();

    public ControlPoint getControlPoint();
    public Registry getRegistry();

    public void shutdown();

}

An instance of UpnpService represents a running UPnP stack, including all network listeners, background maintenance threads, and so on. Cling Core bundles a default implementation which you can simply instantiate as follows:

UpnpService upnpService = new UpnpServiceImpl();

With this implementation, the local UPnP stack is ready immediately, it listens on the network for UPnP messages. You should call the shutdown() method when you no longer need the UPnP stack. The bundled implementation will then cut all connections with remote event listeners and also notify all other UPnP participants on the network that your local services are no longer available. If you do not shutdown your UPnP stack, remote control points might think that your services are still available until your earlier announcements expire.

The bundled implementation offers two additional constructors:

UpnpService upnpService =
    new UpnpServiceImpl(RegistryListener... registryListeners);

This constructor accepts your custom RegistryListener instances, which will be activated immediately even before the UPnP stack listens on any network interface. This means that you can be notified of all incoming device and service registrations as soon as the network stack is ready. Note that this is rarely useful, you'd typically send search requests after the stack is up and running anyway - after adding listeners to the registry.

The second constructor supports customization of the UPnP stack configuration:

UpnpService upnpService =
    new UpnpServiceImpl(new DefaultUpnpServiceConfiguration(8081));

This example configuration will change the TCP listening port of the UPnP stack to 8081, the default being an ephemeral (system-selected free) port. The UpnpServiceConfiguration is also an interface, in the example above you can see how the bundled default implementation is instantiated.

The following section explain the methods of the UpnpService interface and what they return in more detail.

public interface UpnpServiceConfiguration {

    // NETWORK
    public NetworkAddressFactory createNetworkAddressFactory();

    public DatagramProcessor getDatagramProcessor();
    public SOAPActionProcessor getSoapActionProcessor();
    public GENAEventProcessor getGenaEventProcessor();

    public StreamClient createStreamClient();
    public MulticastReceiver createMulticastReceiver(NetworkAddressFactory naf);
    public DatagramIO createDatagramIO(NetworkAddressFactory naf);
    public StreamServer createStreamServer(NetworkAddressFactory naf);

    public Executor getMulticastReceiverExecutor();
    public Executor getDatagramIOExecutor();
    public Executor getStreamServerExecutor();

    // DESCRIPTORS
    public DeviceDescriptorBinder getDeviceDescriptorBinderUDA10();
    public ServiceDescriptorBinder getServiceDescriptorBinderUDA10();

    // PROTOCOL
    public Executor getAsyncProtocolExecutor();
    public Executor getSyncProtocolExecutor();

    // REGISTRY
    public Namespace getNamespace();
    public Executor getRegistryMaintainerExecutor();
    public Executor getRegistryListenerExecutor();

}

...
import org.teleal.cling.transport.impl.apache.StreamClientConfigurationImpl;
import org.teleal.cling.transport.impl.apache.StreamClientImpl;
import org.teleal.cling.transport.impl.apache.StreamServerConfigurationImpl;
import org.teleal.cling.transport.impl.apache.StreamServerImpl;

public class MyUpnpServiceConfiguration extends DefaultUpnpServiceConfiguration {

    @Override
    public StreamClient createStreamClient() {
        return new StreamClientImpl(new StreamClientConfigurationImpl());
    }

    @Override
    public StreamServer createStreamServer(NetworkAddressFactory networkAddressFactory) {
        return new StreamServerImpl(
                new StreamServerConfigurationImpl(
                        networkAddressFactory.getStreamListenPort()
                )
        );
    }

}

public interface ProtocolFactory {

    public ReceivingAsync createReceivingAsync(IncomingDatagramMessage message)
                            throws ProtocolCreationException;;

    public ReceivingSync createReceivingSync(StreamRequestMessage requestMessage);
                            throws ProtocolCreationException;;

    public SendingNotificationAlive createSendingNotificationAlive(LocalDevice ld);
    public SendingNotificationByebye createSendingNotificationByebye(LocalDevice ld);
    public SendingSearch createSendingSearch(UpnpHeader searchTarget);
    public SendingAction createSendingAction(ActionInvocation invocation, URL url);
    public SendingSubscribe createSendingSubscribe(RemoteGENASubscription s);
    public SendingRenewal createSendingRenewal(RemoteGENASubscription s);
    public SendingUnsubscribe createSendingUnsubscribe(RemoteGENASubscription s);
    public SendingEvent createSendingEvent(LocalGENASubscription s);

}

public interface Router {

    public void received(IncomingDatagramMessage msg);
    public void received(UpnpStream stream);

    public void send(OutgoingDatagramMessage msg);
    public StreamResponseMessage send(StreamRequestMessage msg);

    public void broadcast(byte[] bytes);

}

Your primary API when writing a UPnP client application is the ControlPoint. An instance is available with getControlPoint() on the UpnpService.

public interface ControlPoint {

    public void search(UpnpHeader searchType);
    public void execute(ActionCallback callback);
    public void execute(SubscriptionCallback callback);

}

A UPnP client application typically wants to:

• Search the network for a particular service which it knows how to utilize. Any response to a search request will be delivered asynchronously, so you have to listen to the Registry for device registrations, which will occur when devices respond to your search request.
• Execute actions which are offered by services. Action execution is processed asynchronously in Cling Core, and your ActionCallback will be notified when the execution was a success (with result values), or a failure (with error status code and messages).
• Subscribe to a service's eventing, so your SubscriptionCallback is notified asynchronously when the state of a service changes and an event has been received for your client. You also use the callback to cancel the event subscription when you are no longer interested in state changes.

Let's start with searching for UPnP devices on the network.

upnpService.getControlPoint().search(
        new STAllHeader()
);

upnpService.getControlPoint().search(
        new UDNHeader(udn)
);

UDADeviceType udaType = new UDADeviceType("BinaryLight");
upnpService.getControlPoint().search(
        new UDADeviceTypeHeader(udaType)
);

DeviceType type = new DeviceType("org-mydomain", "MyDeviceType", 1);
upnpService.getControlPoint().search(
        new DeviceTypeHeader(type)
);

UDAServiceType udaType = new UDAServiceType("SwitchPower");
upnpService.getControlPoint().search(
        new UDAServiceTypeHeader(udaType)
);

ServiceType type = new ServiceType("org-mydomain", "MyServiceType", 1);
upnpService.getControlPoint().search(
        new ServiceTypeHeader(type)
);

Service service = device.findService(new UDAServiceId("SwitchPower"));
Action getStatusAction = service.getAction("GetStatus");

ActionInvocation getStatusInvocation = new ActionInvocation(getStatusAction);

ActionCallback getStatusCallback = new ActionCallback(getStatusInvocation) {

    @Override
    public void success(ActionInvocation invocation) {
        ActionArgumentValue status  = invocation.getOutput("ResultStatus");

        assert status != null;

        assertEquals(status.getArgument().getName(), "ResultStatus");

        assertEquals(status.getDatatype().getClass(), BooleanDatatype.class);
        assertEquals(status.getDatatype().getBuiltin(), Datatype.Builtin.BOOLEAN);

        assertEquals((Boolean) status.getValue(), Boolean.valueOf(false));
        assertEquals(status.toString(), "0"); // '0' is 'false' in UPnP
    }

    @Override
    public void failure(ActionInvocation invocation,
                        UpnpResponse operation,
                        String defaultMsg) {
        System.err.println(defaultMsg);
    }
};

upnpService.getControlPoint().execute(getStatusCallback);

new ActionCallback.Default(getStatusInvocation, upnpService.getControlPoint()).run();

Action action = service.getAction("SetTarget");

ActionInvocation setTargetInvocation = new ActionInvocation(action);

setTargetInvocation.setInput("NewTargetValue", true); // Can throw InvalidValueException

// Alternative:
//
// setTargetInvocation.setInput(
//         new ActionArgumentValue(
//                 action.getInputArgument("NewTargetValue"),
//                 true
//         )
// );

ActionCallback setTargetCallback = new ActionCallback(setTargetInvocation) {

    @Override
    public void success(ActionInvocation invocation) {
        ActionArgumentValue[] output = invocation.getOutput();
        assertEquals(output.length, 0);
    }

    @Override
    public void failure(ActionInvocation invocation,
                        UpnpResponse operation,
                        String defaultMsg) {
        System.err.println(defaultMsg);
    }
};

upnpService.getControlPoint().execute(setTargetCallback);

SubscriptionCallback callback = new SubscriptionCallback(service, 600) {

    @Override
    public void established(GENASubscription sub) {
        System.out.println("Established: " + sub.getSubscriptionId());
    }

    @Override
    protected void failed(GENASubscription subscription,
                          UpnpResponse responseStatus,
                          Exception exception,
                          String defaultMsg) {
        System.err.println(defaultMsg);
    }

    @Override
    public void ended(GENASubscription sub,
                      CancelReason reason,
                      UpnpResponse response) {
        assert reason == null;
    }

    public void eventReceived(GENASubscription sub) {

        System.out.println("Event: " + sub.getCurrentSequence().getValue());

        Map<String, StateVariableValue> values = sub.getCurrentValues();
        StateVariableValue status = values.get("Status");

        assertEquals(status.getDatatype().getClass(), BooleanDatatype.class);
        assertEquals(status.getDatatype().getBuiltin(), Datatype.Builtin.BOOLEAN);

        System.out.println("Status is: " + status.toString());

    }

    public void eventsMissed(GENASubscription sub, int numberOfMissedEvents) {
        System.out.println("Missed events: " + numberOfMissedEvents);
    }

};

upnpService.getControlPoint().execute(callback);

The Registry, which you access with getRegistry() on the UpnpService, is the heart of a Cling Core UPnP stack. The registry is responsible for:

• Maintaining discovered UPnP devices on your network. It also offers a management API so you can register local devices and offer local services. This is how you expose your own UPnP devices on the network. The registry handles all notification, expiration, request routing, refreshing, and so on.
• Managing GENA (general event & notification architecture) subscriptions. Any outgoing subscription to a remote service is known by the registry, it is refreshed periodically so it doesn't expire. Any incoming eventing subscription to a local service is also known and maintained by the registry (expired and removed when necessary).
• Providing the interface for the addition and removal of RegistryListener instances. A registry listener is used in client or server UPnP applications, it provides a uniform interface for notification of registry events. Typically, you write and register a listener to be notified when a service you want to work with becomes available on the network - on a local or remote device - and when it disappears.

Registry registry = upnpService.getRegistry();
Device foundDevice = registry.getDevice(udn, true);

assertEquals(foundDevice.getIdentity().getUdn(), udn);

LocalDevice localDevice = registry.getLocalDevice(udn, true);

DeviceType deviceType = new UDADeviceType("MY-DEVICE-TYPE", 1);
Collection<Device> devices = registry.getDevices(deviceType);

ServiceType serviceType = new UDAServiceType("MY-SERVICE-TYPE-ONE", 1);
Collection<Device> devices = registry.getDevices(serviceType);

public interface RegistryListener {

    public void remoteDeviceDiscoveryStarted(Registry registry, RemoteDevice device);
    public void remoteDeviceDiscoveryFailed(Registry registry, RemoteDevice device, Exception ex);

    public void remoteDeviceAdded(Registry registry, RemoteDevice device);
    public void remoteDeviceUpdated(Registry registry, RemoteDevice device);
    public void remoteDeviceRemoved(Registry registry, RemoteDevice device);

    public void localDeviceAdded(Registry registry, LocalDevice device);
    public void localDeviceRemoved(Registry registry, LocalDevice device);

}

public class QuickstartRegistryListener extends DefaultRegistryListener {

    @Override
    public void remoteDeviceDiscoveryStarted(Registry registry, RemoteDevice device) {

        // You can already use the device here and you can see which services it will have
        assertEquals(device.findServices().length, 3);

        // But you can't use the services
        for (RemoteService service: device.findServices()) {
            assertEquals(service.getActions().length, 0);
            assertEquals(service.getStateVariables().length, 0);
        }
    }

    @Override
    public void remoteDeviceDiscoveryFailed(Registry registry, RemoteDevice device, Exception ex) {
        // You might want to drop the device, its services couldn't be hydrated
    }
}

QuickstartRegistryListener listener = new QuickstartRegistryListener();
upnpService.getRegistry().addListener(listener);

public class MyListener extends DefaultRegistryListener {

    @Override
    public void remoteDeviceAdded(Registry registry, RemoteDevice device) {
        Service myService = device.findService(new UDAServiceId("MY-SERVICE-123"));
        if (myService != null) {
            // Do something with the discovered service
        }
    }

    @Override
    public void remoteDeviceRemoved(Registry registry, RemoteDevice device) {
        // Stop using the service if this is the same device, it's gone now
    }
}

The UPnP specification defines no framework for custom datatypes. The predictable result is that service designers and vendors are overloading strings with whatever semantics they consider necessary for their particular needs. For example, the UPnP A/V specifications often require lists of values (like a list of strings or a list of numbers), which are then transported between service and control point as a single string - the individual values are represented in this string separated by commas.

Cling supports these conversions and it tries to be as transparent as possible.

import org.teleal.cling.model.types.csv.CSV;
import org.teleal.cling.model.types.csv.CSVInteger;

@UpnpService(
        serviceId = @UpnpServiceId("MyService"),
        serviceType = @UpnpServiceType(namespace = "mydomain", value = "MyService"),
        stringConvertibleTypes = MyStringConvertible.class
)
public class MyServiceWithStringConvertibles {

    @UpnpStateVariable
    private URL myURL;

    @UpnpStateVariable
    private URI myURI;

    @UpnpStateVariable(datatype = "string")
    private List<Integer> myNumbers;

    @UpnpStateVariable
    private MyStringConvertible myStringConvertible;

    @UpnpAction(out = @UpnpOutputArgument(name = "Out"))
    public URL getMyURL() {
        return myURL;
    }

    @UpnpAction
    public void setMyURL(@UpnpInputArgument(name = "In") URL myURL) {
        this.myURL = myURL;
    }

    @UpnpAction(out = @UpnpOutputArgument(name = "Out"))
    public URI getMyURI() {
        return myURI;
    }

    @UpnpAction
    public void setMyURI(@UpnpInputArgument(name = "In") URI myURI) {
        this.myURI = myURI;
    }

    @UpnpAction(out = @UpnpOutputArgument(name = "Out"))
    public CSV<Integer> getMyNumbers() {
        CSVInteger wrapper = new CSVInteger();
        if (myNumbers != null)
            wrapper.addAll(myNumbers);
        return wrapper;
    }

    @UpnpAction
    public void setMyNumbers(
            @UpnpInputArgument(name = "In")
            CSVInteger myNumbers
    ) {
        this.myNumbers = myNumbers;
    }

    @UpnpAction(out = @UpnpOutputArgument(name = "Out"))
    public MyStringConvertible getMyStringConvertible() {
        return myStringConvertible;
    }

    @UpnpAction
    public void setMyStringConvertible(
            @UpnpInputArgument(name = "In")
            MyStringConvertible myStringConvertible
    ) {
        this.myStringConvertible = myStringConvertible;
    }
}

@UpnpService(
        serviceId = @UpnpServiceId("MyService"),
        serviceType = @UpnpServiceType(namespace = "mydomain", value = "MyService"),
        stringConvertibleTypes = MyStringConvertible.class
)
public class MyServiceWithEnum {

    public enum Color {
        Red,
        Green,
        Blue
    }

    @UpnpStateVariable
    private Color color;

    @UpnpAction(out = @UpnpOutputArgument(name = "Out"))
    public Color getColor() {
        return color;
    }

    @UpnpAction
    public void setColor(@UpnpInputArgument(name = "In") String color) {
        this.color = Color.valueOf(color);
    }

}

You can instantiate the Cling UpnpService in your Android application's main activity. On the other hand, if several activities in your application require access to the UPnP stack, a better design would utilize a background android.app.Service. Any activity that wants to access the UPnP stack can then bind and unbind from this service as needed.

The interface of this service component is org.teleal.cling.android.AndroidUpnpService:

public interface AndroidUpnpService {
    public UpnpService get();
    public UpnpServiceConfiguration getConfiguration();
    public Registry getRegistry();
    public ControlPoint getControlPoint();
}

An activity typically accesses the Registry of known UPnP devices or searches for and controls UPnP devices with the ControlPoint.

You have to configure the built-in implementation of this service component in your AndroidManifest.xml:

<manifest ...>

    <uses-permission android:name="android.permission.INTERNET"/>
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
    <uses-permission android:name="android.permission.CHANGE_WIFI_MULTICAST_STATE"/>
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>

    <application ...>

        <activity ...>
            ...
        </activity>

        <service android:name="org.teleal.cling.android.AndroidUpnpServiceImpl"/>

    </application>

</manifest>

The Cling UPnP service requires access to the WiFi interface on the device, this is in fact the only network interface on which it will bind. The service will automatically detect when the WiFi interface is switched off and handle this situation gracefully: Any client operation will result in a "no response from server" state, which your code has to expect anyway.

The service component starts and stops the UPnP system when the service component is created and destroyed. This depends on how you access the service component from within your activities.

The lifecycle of services in Android is well defined. The first activity which binds to a service will start the service if it is not already running. When no activity is bound to the service any more, the operating system will destroy the service.

Let's write a simple UPnP browsing activity. It shows all devices on your network in a list and it has a menu option which triggers a search action. The activity connects to the UPnP service and then listens to any device additions or removals in the registry, so the displayed list of devices is kept up-to-date.

This is the skeleton of the activity class:

import android.app.ListActivity;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.view.Menu;
import android.view.MenuItem;
import android.widget.ArrayAdapter;
import android.widget.Toast;
import org.teleal.cling.android.AndroidUpnpService;
import org.teleal.cling.android.AndroidUpnpServiceImpl;
import org.teleal.cling.model.meta.Device;
import org.teleal.cling.model.meta.LocalDevice;
import org.teleal.cling.model.meta.RemoteDevice;
import org.teleal.cling.registry.DefaultRegistryListener;
import org.teleal.cling.registry.Registry;

public class UpnpBrowser extends ListActivity {

    private ArrayAdapter<DeviceDisplay> listAdapter;

    private AndroidUpnpService upnpService;

    private ServiceConnection serviceConnection = ...

    private RegistryListener registryListener = new BrowseRegistryListener();

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        listAdapter =
            new ArrayAdapter(
                this,
                android.R.layout.simple_list_item_1
            );
        setListAdapter(listAdapter);

        getApplicationContext().bindService(
            new Intent(this, AndroidUpnpServiceImpl.class),
            serviceConnection,
            Context.BIND_AUTO_CREATE
        );
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        if (upnpService != null) {
            upnpService.getRegistry().removeListener(registryListener);
        }
        getApplicationContext().unbindService(serviceConnection);
    }

    ...

}

We utilize the default layout provided by the Android runtime and the ListActivity superclass. Note that this activity can be your applications main activity, or further up in the stack of a task. The listAdapter is the glue between the device additions and removals on the Cling Registry and the list of items shown in the user interface.

The upnpService variable is null when no backend service is bound to this activity. Binding and unbinding occurs in the onCreate() and onDestroy() callbacks, so the activity is bound to the service as long as it is alive.

Binding and unbinding the service is handled with this ServiceConnection:

private ServiceConnection serviceConnection = new ServiceConnection() {

    public void onServiceConnected(ComponentName className, IBinder service) {
        upnpService = (AndroidUpnpService) service;

        // Refresh the list with all known devices
        listAdapter.clear();
        for (Device device : upnpService.getRegistry().getDevices()) {
            registryListener.deviceAdded(device);
        }

        // Getting ready for future device advertisements
        upnpService.getRegistry().addListener(registryListener);

        // Search asynchronously for all devices
        upnpService.getControlPoint().search();
    }

    public void onServiceDisconnected(ComponentName className) {
        upnpService = null;
    }
};

First, all UPnP devices that are already known can be queried and displayed (there might be none if the UPnP service was just started and no device has so far announced its presence.)

Next a listener is registered with the Registry of the UPnP service. This listener will process additions and removals of devices as they are discovered on your network, and update the items shown in the user interface list. The BrowseRegistryListener is removed when the activity is destroyed.

Finally, you start asynchronous discovery by sending a search message to all UPnP devices, so they will announce themselves. Note that this search message is NOT required every time you connect to the service. It is only necessary once, to populate the registry with all known devices when your (main) activity and application starts.

This is the BrowseRegistryListener, its only job is to update the displayed list items:

class BrowseRegistryListener extends DefaultRegistryListener {

    @Override
    public void remoteDeviceDiscoveryStarted(Registry registry, RemoteDevice device) {
        deviceAdded(device);
    }

    @Override
    public void remoteDeviceDiscoveryFailed(Registry registry, final RemoteDevice device, final Exception ex) {
        runOnUiThread(new Runnable() {
            public void run() {
                Toast.makeText(
                        BrowseActivity.this,
                        "Discovery failed of '" + device.getDisplayString() + "': " +
                                (ex != null ? ex.toString() : "Couldn't retrieve device/service descriptors"),
                        Toast.LENGTH_LONG
                ).show();
            }
        });
        deviceRemoved(device);
    }

    @Override
    public void remoteDeviceAdded(Registry registry, RemoteDevice device) {
        deviceAdded(device);
    }

    @Override
    public void remoteDeviceRemoved(Registry registry, RemoteDevice device) {
        deviceRemoved(device);
    }

    @Override
    public void localDeviceAdded(Registry registry, LocalDevice device) {
        deviceAdded(device);
    }

    @Override
    public void localDeviceRemoved(Registry registry, LocalDevice device) {
        deviceRemoved(device);
    }

    public void deviceAdded(final Device device) {
        runOnUiThread(new Runnable() {
            public void run() {
                DeviceDisplay d = new DeviceDisplay(device);
                int position = listAdapter.getPosition(d);
                if (position >= 0) {
                    // Device already in the list, re-set new value at same position
                    listAdapter.remove(d);
                    listAdapter.insert(d, position);
                } else {
                    listAdapter.add(d);
                }
            }
        });
    }

    public void deviceRemoved(final Device device) {
        runOnUiThread(new Runnable() {
            public void run() {
                listAdapter.remove(new DeviceDisplay(device));
            }
        });
    }
}

For performance reasons, when a new device has been discovered, we don't wait until a fully hydrated (all services retrieved and validated) device metadata model is available. We react as quickly as possible and don't wait until the remoteDeviceAdded() method will be called. We display any device even while discovery is still running. You'd usually not care about this on a desktop computer, however, Android handheld devices are slow and UPnP uses several bloated XML descriptors to exchange metadata about devices and services. Sometimes it can take several seconds before a device and its services are fully available. The remoteDeviceDiscoveryStarted() and remoteDeviceDiscoveryFailed() methods are called as soon as possible in the discovery process. By the way, devices are equal (a.equals(b)) if they have the same UDN, they might not be identical (a==b).

Note that the Registry will call the listener methods in a separate thread. You have to update the displayed list data in the thread of the user interface.

The following two methods on the activity add a menu with a search action, so a user can refresh the list manually:

@Override
public boolean onCreateOptionsMenu(Menu menu) {
    menu.add(0, 0, 0, R.string.search_lan)
        .setIcon(android.R.drawable.ic_menu_search);
    return true;
}

@Override
public boolean onOptionsItemSelected(MenuItem item) {
    if (item.getItemId() == 0 && upnpService != null) {
        upnpService.getRegistry().removeAllRemoteDevices();
        upnpService.getControlPoint().search();
    }
    return false;
}

Finally, the DeviceDisplay class is a very simple JavaBean that only provides a toString() method for rendering the list. You can display any information about UPnP devices by changing this method:

class DeviceDisplay {
    Device device;

    public DeviceDisplay(Device device) {
        this.device = device;
    }

    public Device getDevice() {
        return device;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) return true;
        if (o == null || getClass() != o.getClass()) return false;
        DeviceDisplay that = (DeviceDisplay) o;
        return device.equals(that.device);
    }

    @Override
    public int hashCode() {
        return device.hashCode();
    }

    @Override
    public String toString() {
        // Display a little star while the device is being loaded
        return device.isFullyHydrated() ? device.getDisplayString() : device.getDisplayString() + " *";
    }
}

We have to override the equality operations as well, so we can remove and add devices from the list manually with the DeviceDisplay instance as a convenient handle.

The UPnP service consumes memory and CPU time while it is running. Although this is typically not an issue on a regular machine, this might be a problem on an Android handset. You can preserve memory and handset battery power if you disable certain features of the Cling UPnP service, or if you even pause and resume it when appropriate.

public class MyUpnpService extends AndroidUpnpServiceImpl {

    @Override
    protected AndroidUpnpServiceConfiguration createConfiguration(WifiManager wifiManager) {
        return new AndroidUpnpServiceConfiguration(wifiManager) {

            @Override
            public int getRegistryMaintenanceIntervalMillis() {
                return 7000;
            }

        };
    }
}

public class MyUpnpService extends AndroidUpnpServiceImpl {

    @Override
    protected AndroidUpnpServiceConfiguration createConfiguration(WifiManager wifiManager) {
        return new AndroidUpnpServiceConfiguration(wifiManager) {

            @Override
            public ServiceType[] getExclusiveServiceTypes() {
                return new ServiceType[] {
                        new UDAServiceType("SwitchPower")
                };
            }

        };
    }
}
